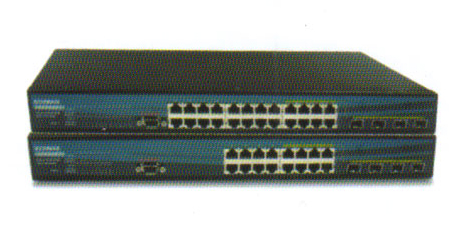

 Gigabit / Switches Series   Edimax Gigabit Web-Smart Switches

Edimax Gigabit Web-Smart Switches :

  • Supports QoS with 4 Priority Queues and Port Mirroring
  • Supports Port -Based and Tag Based VLAN
  • Mac-Based Trunking with Automatic Link Fail-Over
  • Isolated Groups Provide the Security for Certain Ports
  • Supports Trap Event for Exception Management
  • Provides 2 x SFP Gigabit module ports

Key FeaturesQoS with Four Priority Queues
The QoS (Quality of Service) feature provides four internal queues to support four different classifications of traffic. High priority packet streams experience less delay inside the switch, which supports lower latency for certain delay-sensitive traffic.

The ES-1126C/D can classify the packet as one of the four priorities according to 802.1p priority tag. The QoS operate at full wire speed. The actual scheduling at each egress port can be based upon a strict priority, weighted round robin or a mix of both.

Port Mirroring
This mechanism helps track network errors or abnormal packet transmission without interrupting the flow of data. Allow ingress traffic to be monitored by a single port that is defined as mirror capture port. The mirror capture port can be any 10/100 port, 10/100/1000 port. Mirroring multiple ports is possible but can create congestion at the mirror capture port.


VLAN for Performance & Security
The VLAN feature in the switch offers the benefits of both security and performance. VLAN is used to isolate traffic between different users and thus provides better security. Limiting the broadcast traffic to within the same VLAN broadcast domain also enhances performance.


Isolated Group, Provide Security for Certain Ports

The isolated group feature allows certain ports to be designated as protected. All other ports are non-isolated. Traffic between isolated group members is blocked. Traffic can only be sent from isolated group to non-isolated group.


Mac-based Trunking with Automatic Link Fail-over

Dynamic fail-over means packets will not get assigned to any trunk member port that has failed. If one of the ports were to fail, traffic will automatically get distributed to the remaining active ports.Trap Event for Exception Management

we use SNMP Trap mechanism to inform supervisor to know the instant abnormal status of the switch.


2 Dual Media for Flexible Fiber Connection
25, 26 dual media port are provided for flexible fiber connection. You can select to install optional transceiver modules in these slots for short, medium or long distance fiber backbone attachment. Use of the SFP will disable their corresponding built-in 10/100/1000Base-T connections.


Build-in Web-base Management
Instead of using CLI interface, we provide a more convenient GUI for user. We just need to configure switch via Web Browser. It is more quickly for user to familiar the method to control switch on the basis of this design.
 Price: We will quote you depends on requirements.

Please contact us at 603-55120720 for further information.
